Optomechanical mounts for holding and aligning optical components: high-stability kinematic mounts (ORAB/ORABS), fixed and XY-translating lens mounts (LMB) for optics up to 150 mm, cylindrical lens mounts and 45° mirror adapters.

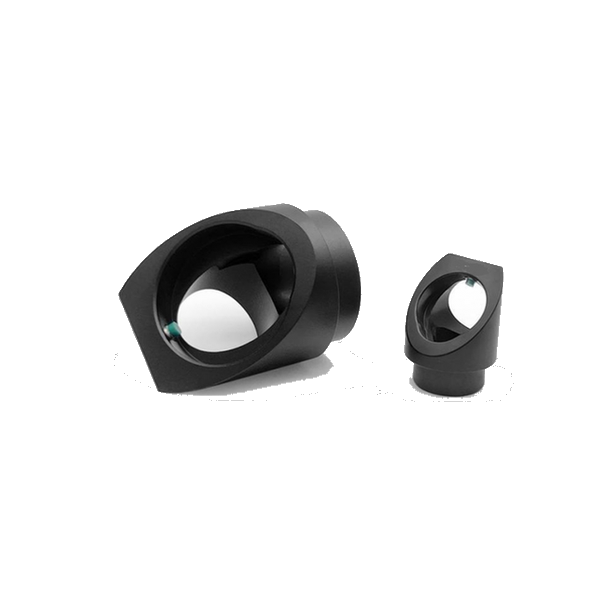

45-M25 Series 45° Mirror Adapters
- For optics 12.7–30 mm
- Setscrew retention, for 45° beam-path conversion
- Aluminum body, black anodized

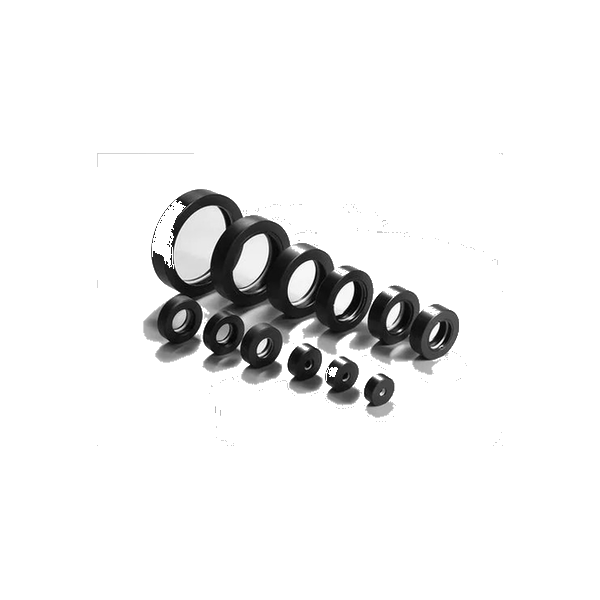

LMB Series Lens Mounts
- For optics 10–150 mm
- Retaining-ring retention
- Internal PTFE pads protect optics
- M6 mounting thread
- Aluminum body, black anodized
LMB-1 Series Fixed Lens Mounts
- For optics 10–150 mm
- Retaining-ring retention
- Internal PTFE pads protect optics
- M6 mounting thread
- Aluminum body, black anodized

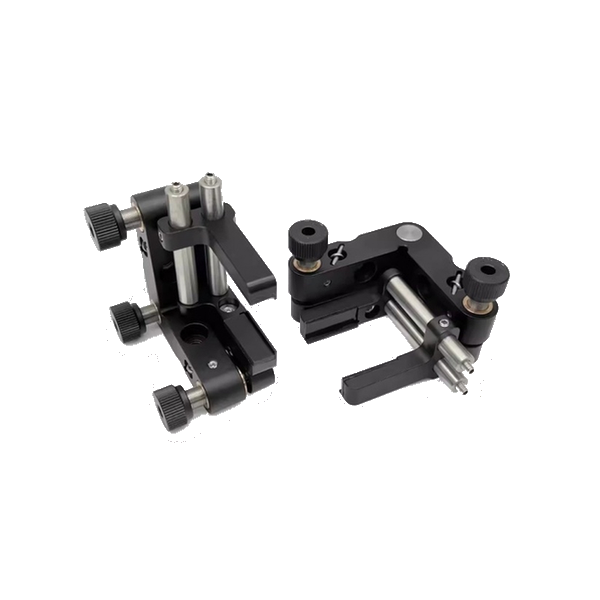

LMB-XX Series Cylindrical Lens Mounts
- For optics 2–65 mm
- For rectangular cylindrical lenses
- Internal PTFE pads protect optics
- M6 mounting, M6 × 0.25 adjusters; aluminum body, black anodized

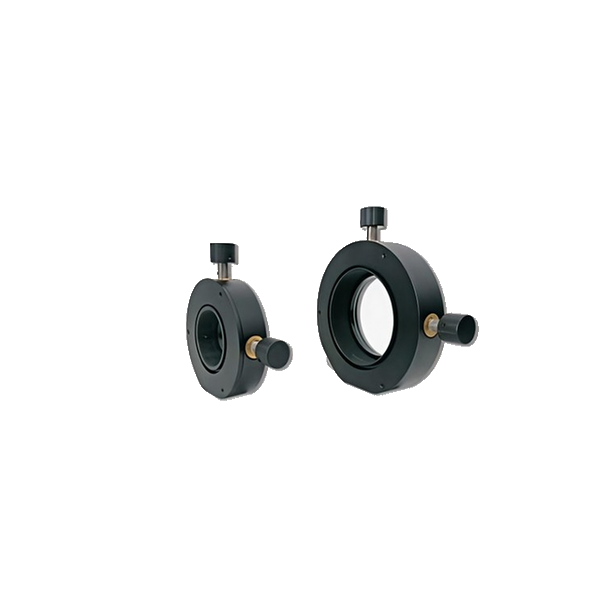

LMB-XY Series XY Translating Lens Mounts
- For optics 20–50.8 mm
- Retaining-ring retention; internal PTFE pads protect optics
- M6 mounting, M6 × 0.5 adjusters
- Aluminum body, black anodized

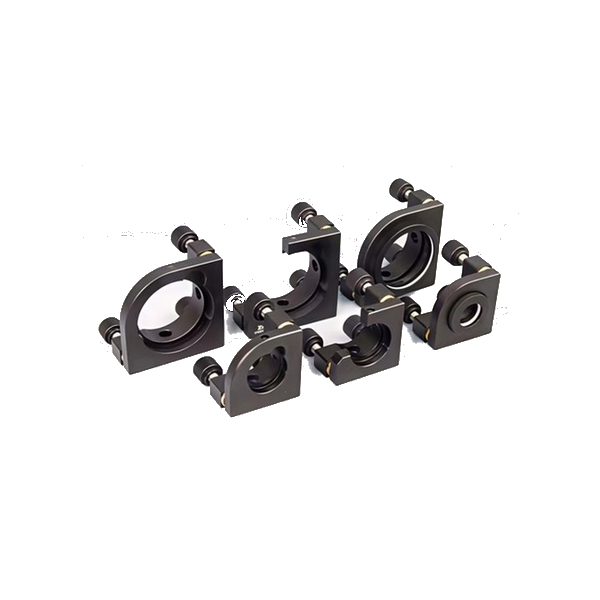

ORAB Series High-Stability Kinematic Mounts
- For optics 20–50.8 mm
- Setscrew retention, three-axis adjustment
- M6 × 0.25 adjusters with lock
- Aluminum body, black anodized

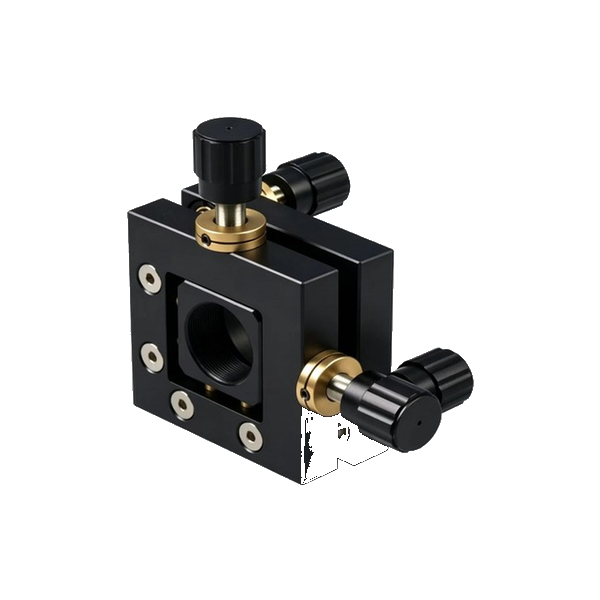

ORAB-4-LBE Beam Expander Mount
- Industrial-grade beam expander mount
- Triple-lock design
- Maximum stability and rigidity

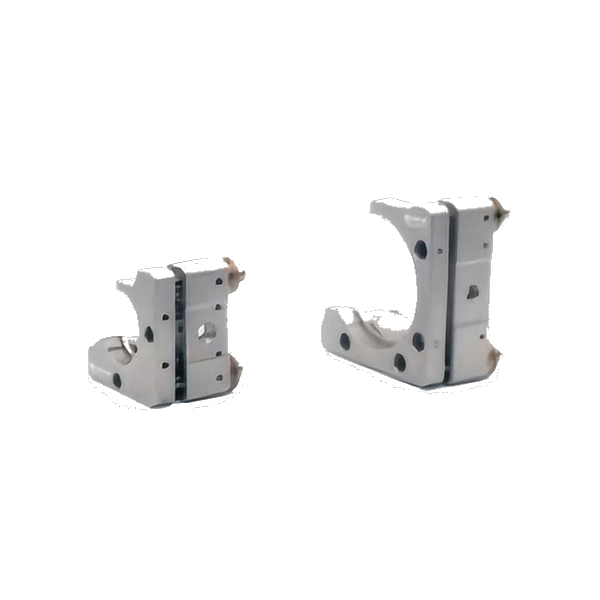

ORABS Series Stainless Steel Kinematic Mounts
- Detailed specifications available on request
Note: product specifications are typical values; detailed drawings and full specifications are available on request. OEM and custom designs are welcome.
