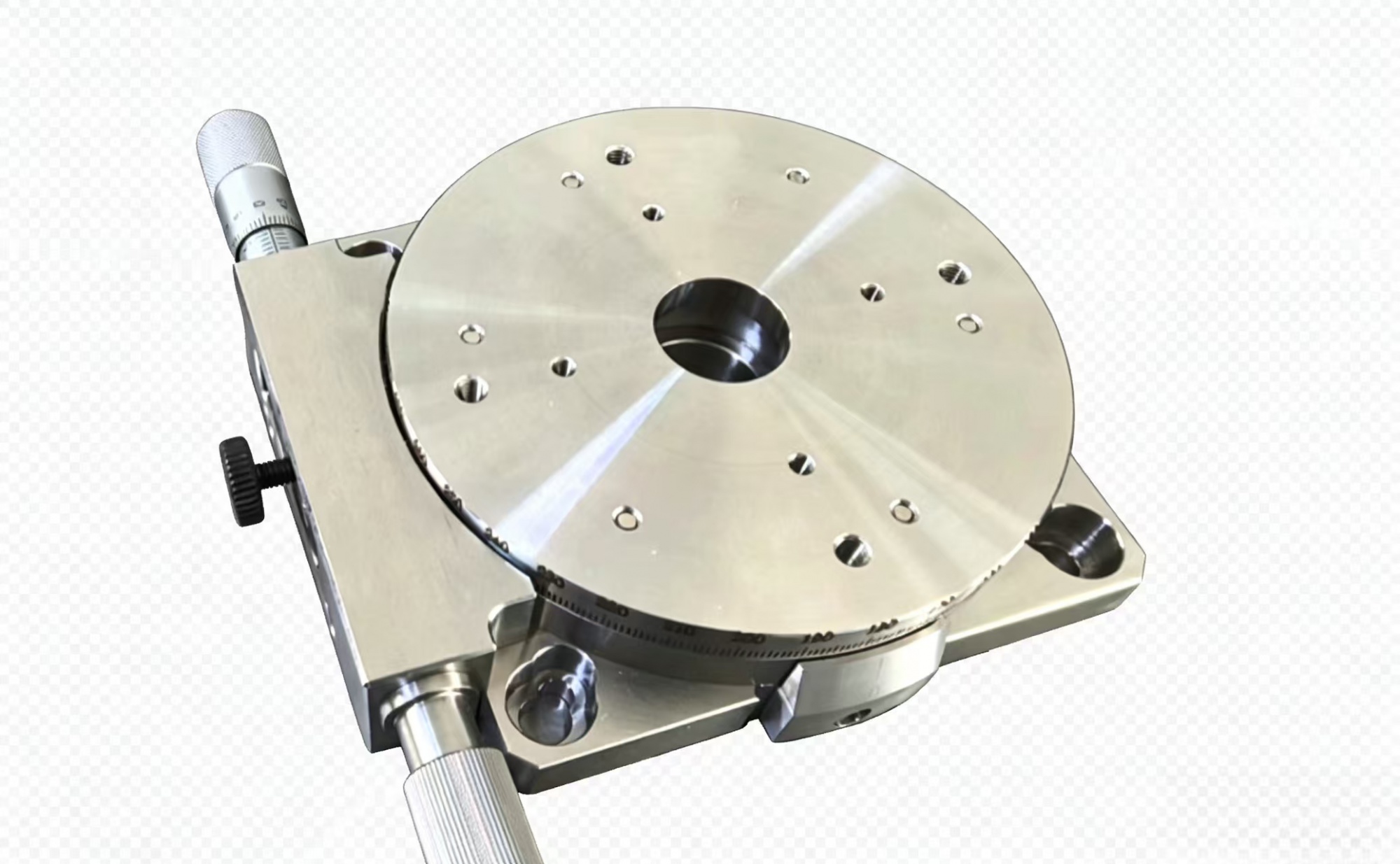

MSRC Series Manual Rotation Stages
ModelMSRC Series中文页面 ↗
- Single-axis drive with standard micrometer
- Table sizes: multiple options
- Coarse 360°, fine ±5° or ±10°
- Lapped or crossed-roller bearing guides
+86 137 1698 9256 Ms. Liu · sally-liu@ddhc-tech.com
Custom and OEM designs are welcome — contact us for pricing and selection support.
Specifications
| Model | MSRC Series |
|---|---|
| Series | MSRC |
| Category | Manual Stages |
| Motion | Rotation |
| Available Models | MSRC10-45, MSRC10-60, MSRC10-60-M6, MSRC10-90 (4 models; coarse 360°, fine ±5°, tables φ45/φ60/φ90 mm, crossed roller bearing, stainless steel, load 1.5–6 kg) |
| Naming Convention | MS=manual + stainless steel; R=rotation; C=crossed roller bearing (D=lapped fit); 10=fine-adjust travel code; trailing digits=table diameter (mm); suffix M6=base mounting holes M6 |
| Drive Position | Coarse 360° + fine ±5° (micrometer head) |
| Table Size | φ45 / φ60 / φ60 / φ90 mm |
| Guide Type | Crossed roller bearing |
| Body Material | Aluminum alloy, black anodized |
| Static Parallelism | 0.1 mm |
| Note | Specifications compiled from the product selection chart; refer to the latest factory data. |
| Source SKU | 12261404 |
Specifications shown are typical values; detailed drawings and full specifications are available on request. OEM and custom designs are welcome.
Functional Image

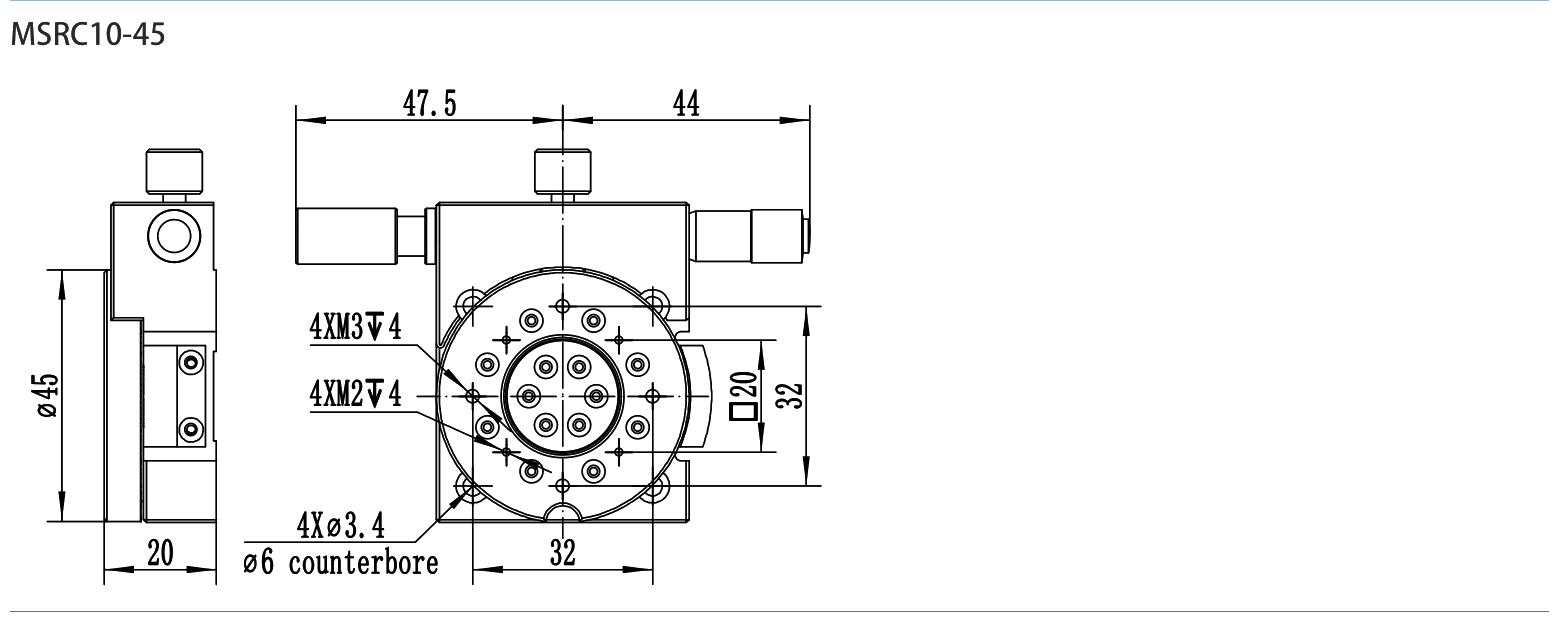

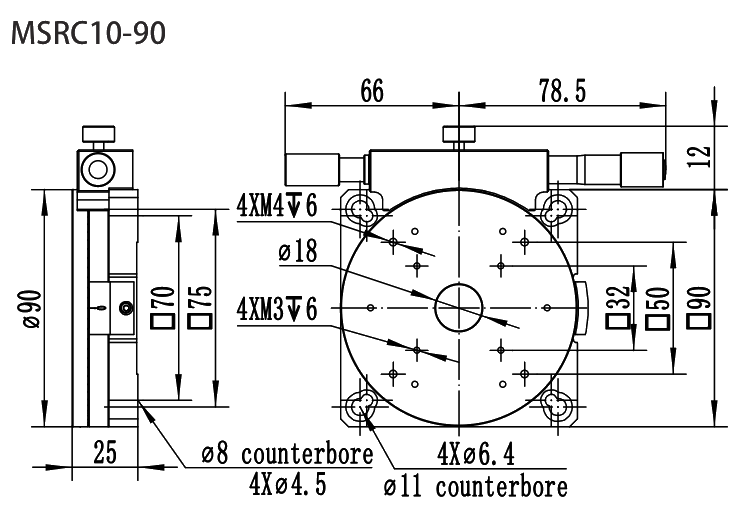

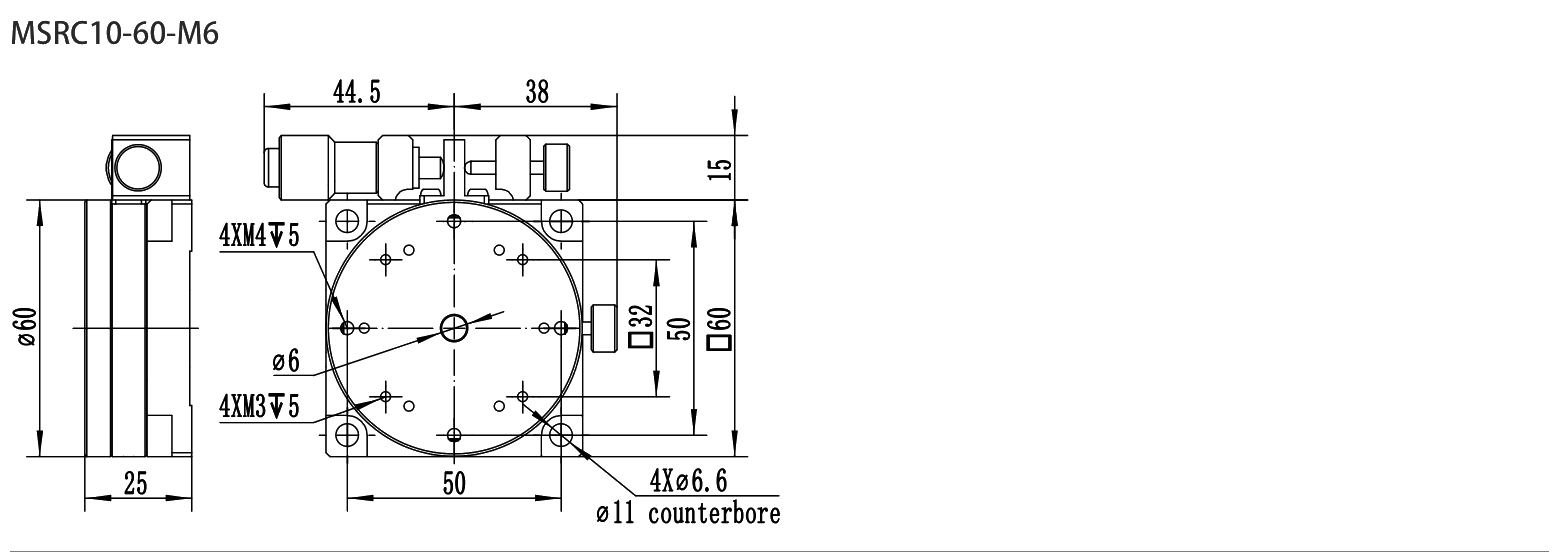

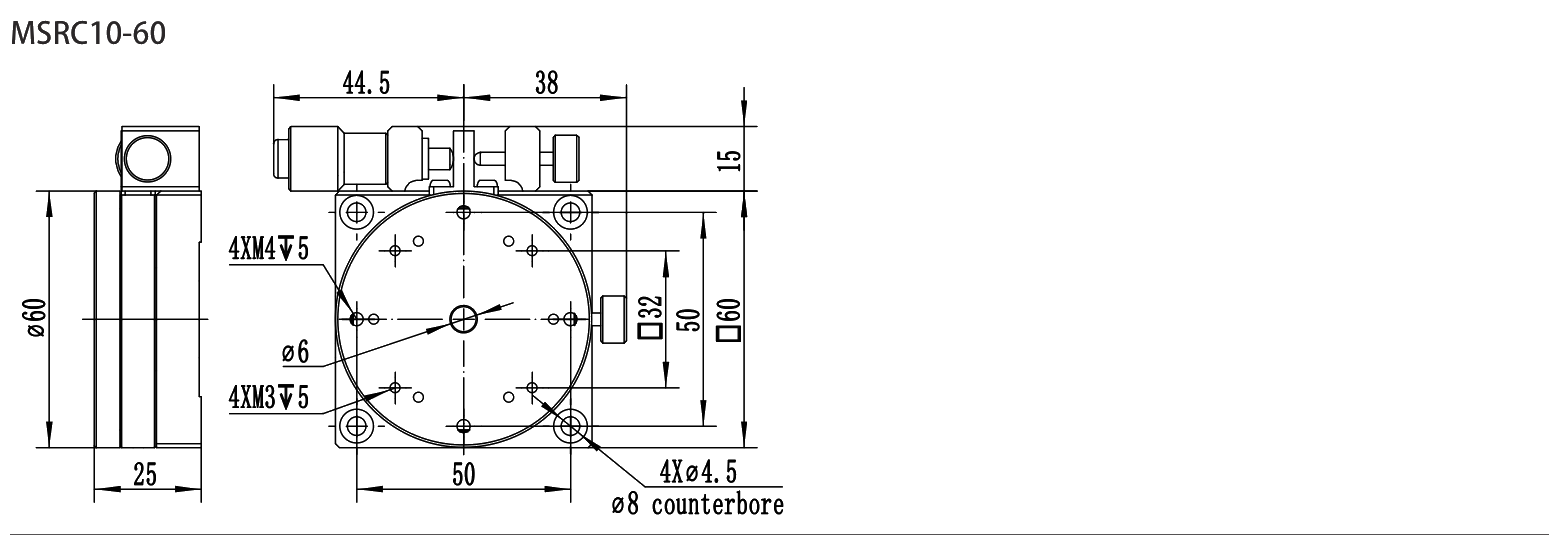

Typical dimensional drawings (from the official manual). Click to enlarge. Refer to factory drawings for exact dimensions; custom and OEM designs are welcome.
