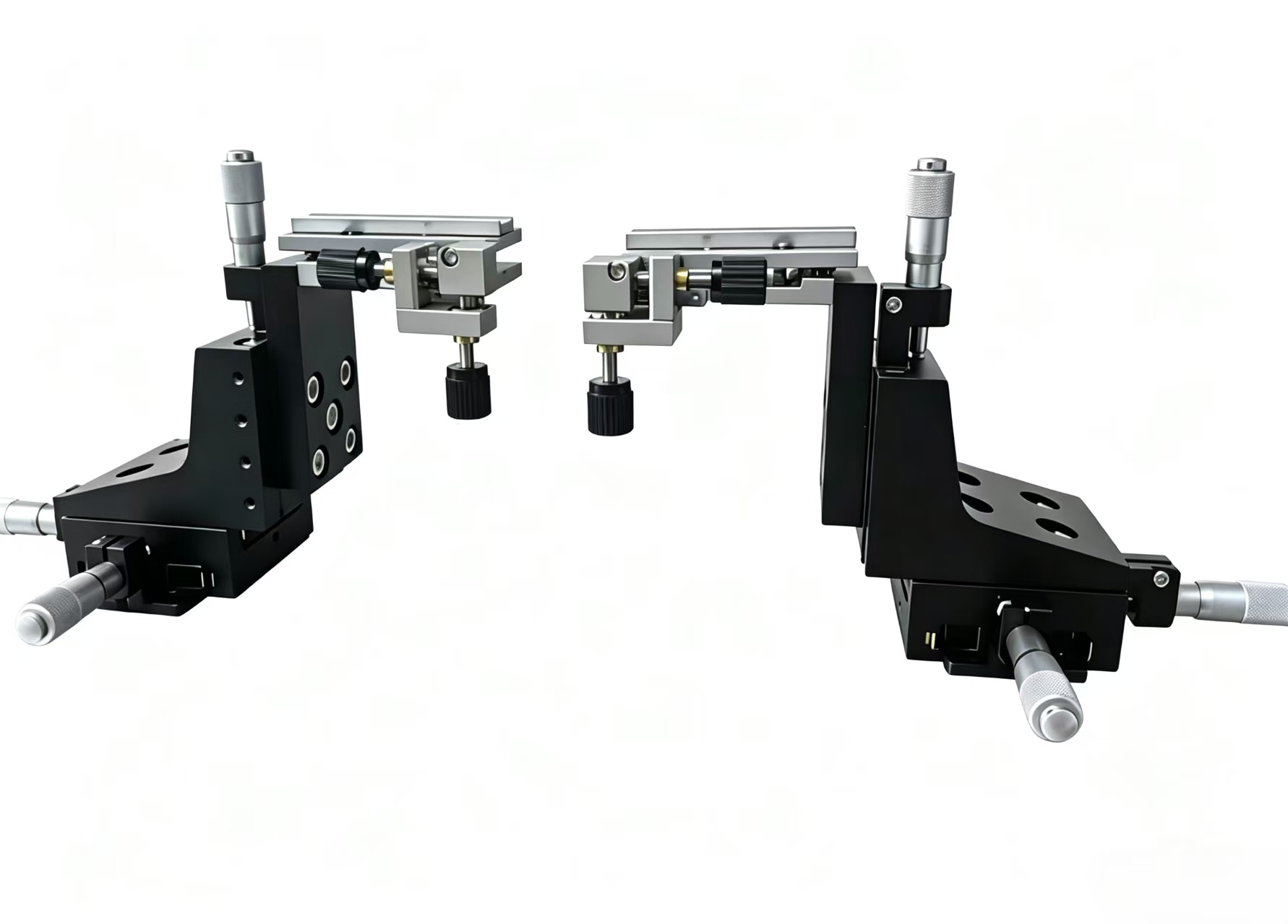

MA Series 5-Axis Aluminum Fiber Alignment Stage
ModelMA Series中文页面 ↗
- Detailed specifications available on request
+86 137 1698 9256 Ms. Liu · sally-liu@ddhc-tech.com
Custom and OEM designs are welcome — contact us for pricing and selection support.
Specifications
| Model | MA Series |
|---|---|
| Series | MA |
| Category | Fiber Optic Alignment Stages |
| Motion | Translation |
| Available Models | MAP5-L, MAP5-R, MAW5-L, MAW5-R (4 models; 5-axis: X/Y/Z travel 13 mm plus θX/θY; MAP tilt ±3°, MAW large tilt ±5°, wire-ball guide, aluminium) |
| Naming Convention | MA=manual + fiber-optic; P/W=series code (P=standard tilt-angle type / W=large tilt-angle type); digit=number of adjustment axes; suffix=drive position (L=left / R=right) |
| Center Load | 2.2 / 2.5 kg |
| Weight | 1.5 / 1.3 kg |
| Drive Position | L: left / R: right (micrometer head) |
| Table Size | 25×25 / 30×30 mm (by model) |
| Guide Type | Wire-ball guide |
| Body Material | Aluminum alloy, black anodized |
| Static Parallelism | ≤0.01 mm |
| Note | Specifications compiled from the product selection chart; refer to the latest factory data. |
| Source SKU | 12261409 |
Specifications shown are typical values; detailed drawings and full specifications are available on request. OEM and custom designs are welcome.
Functional Image

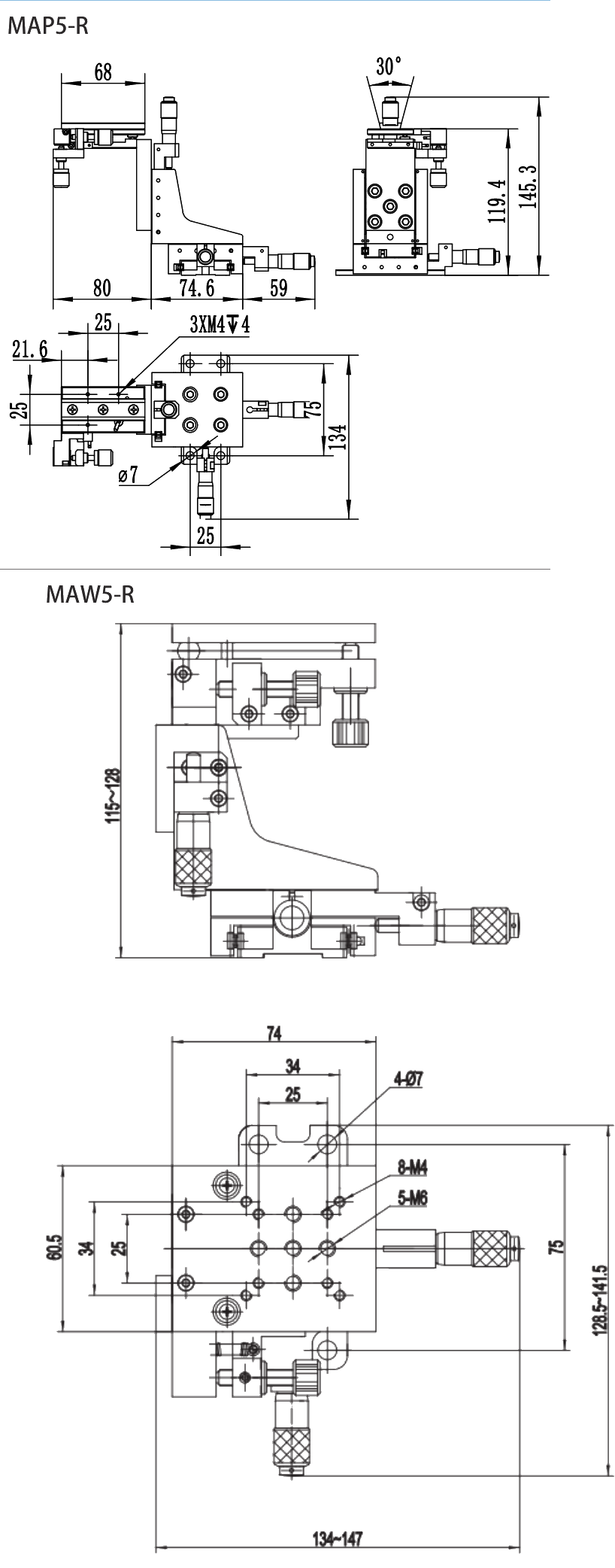

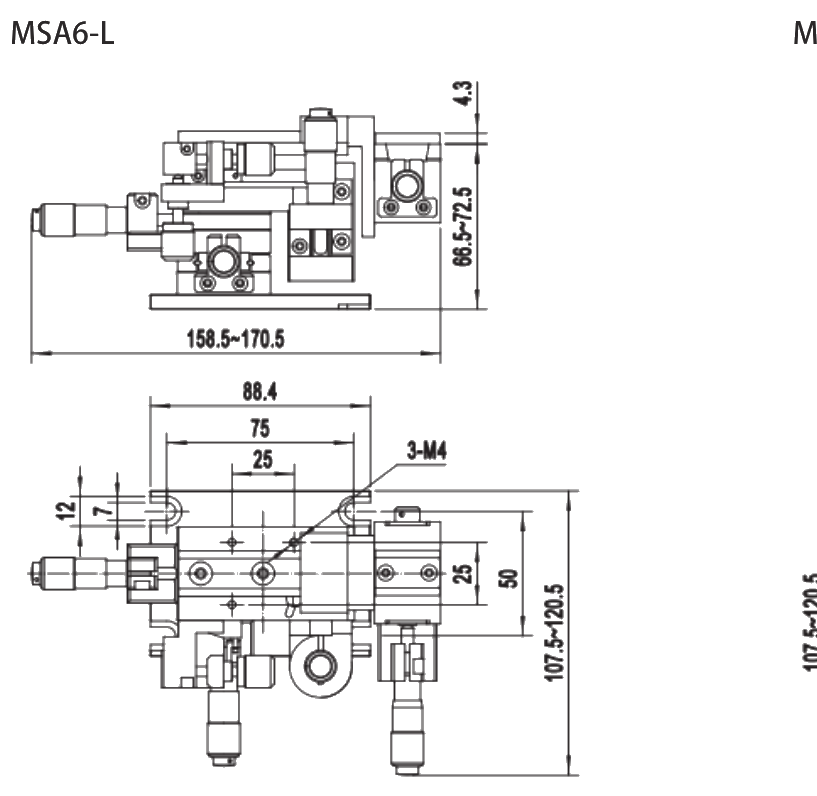

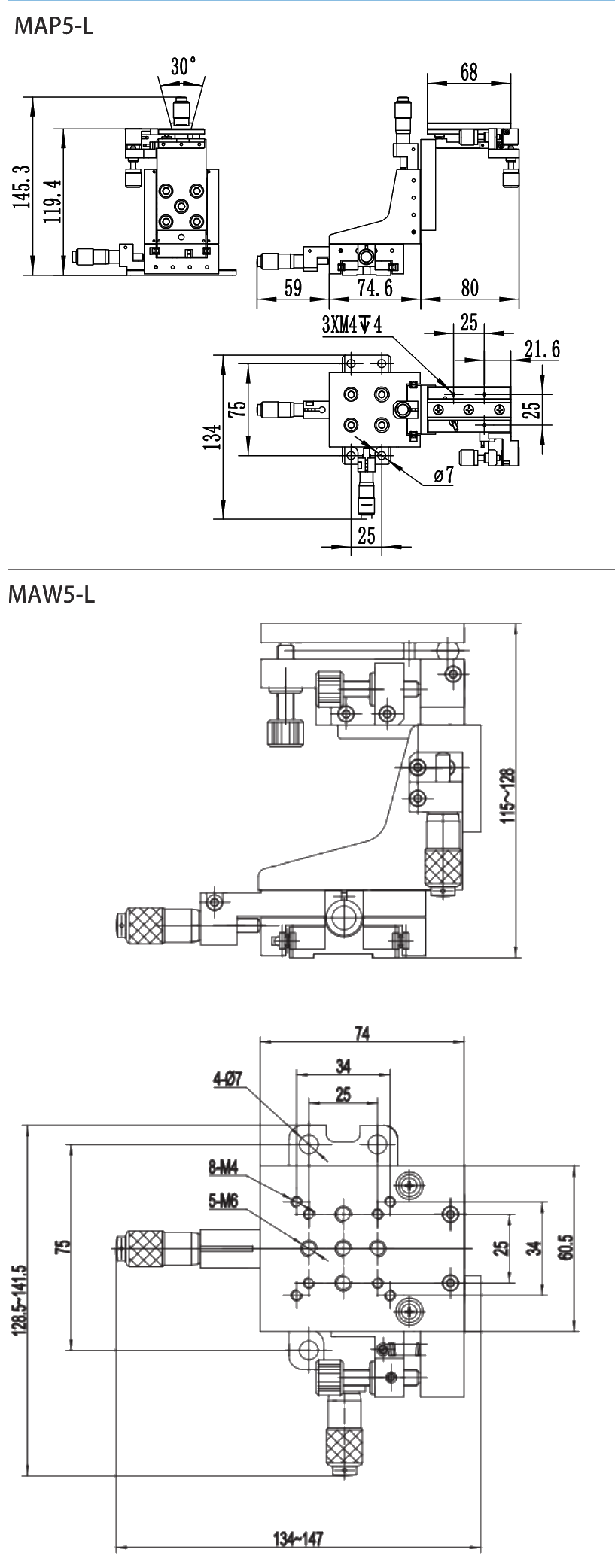

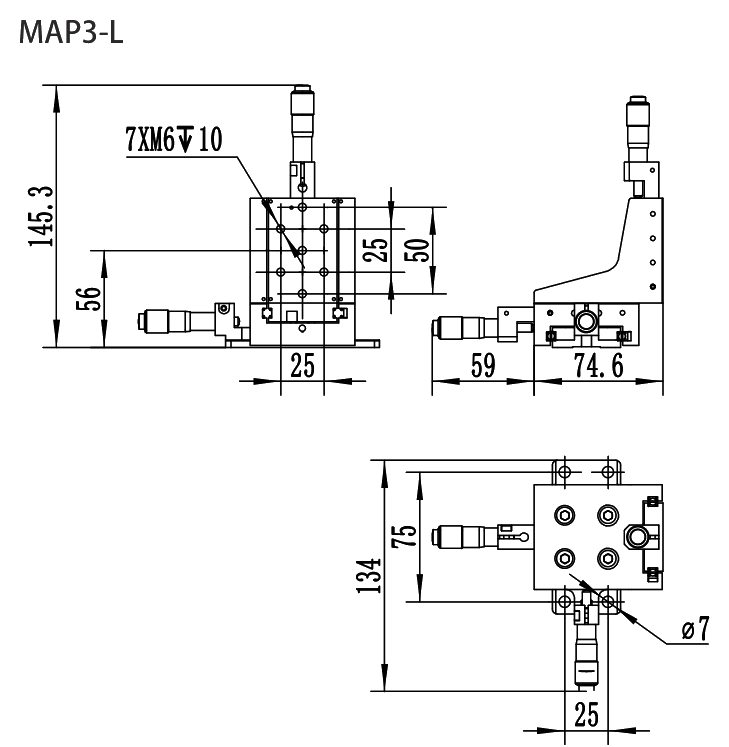

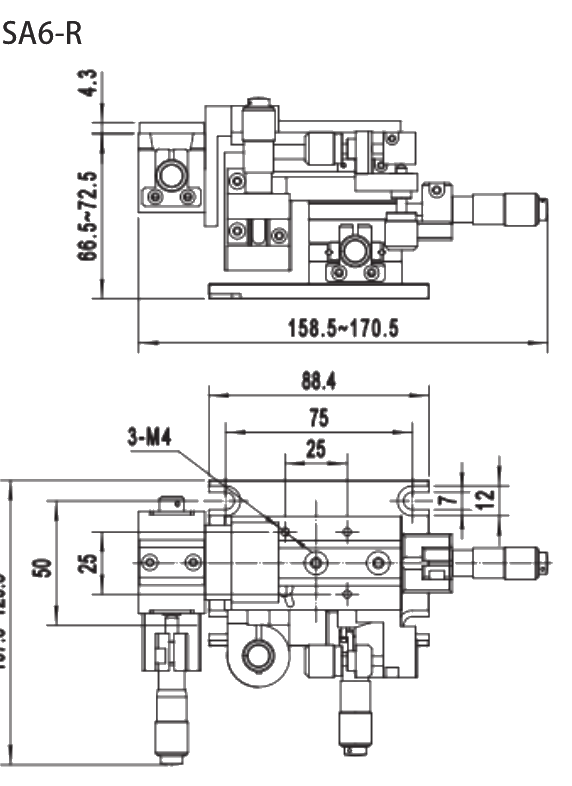

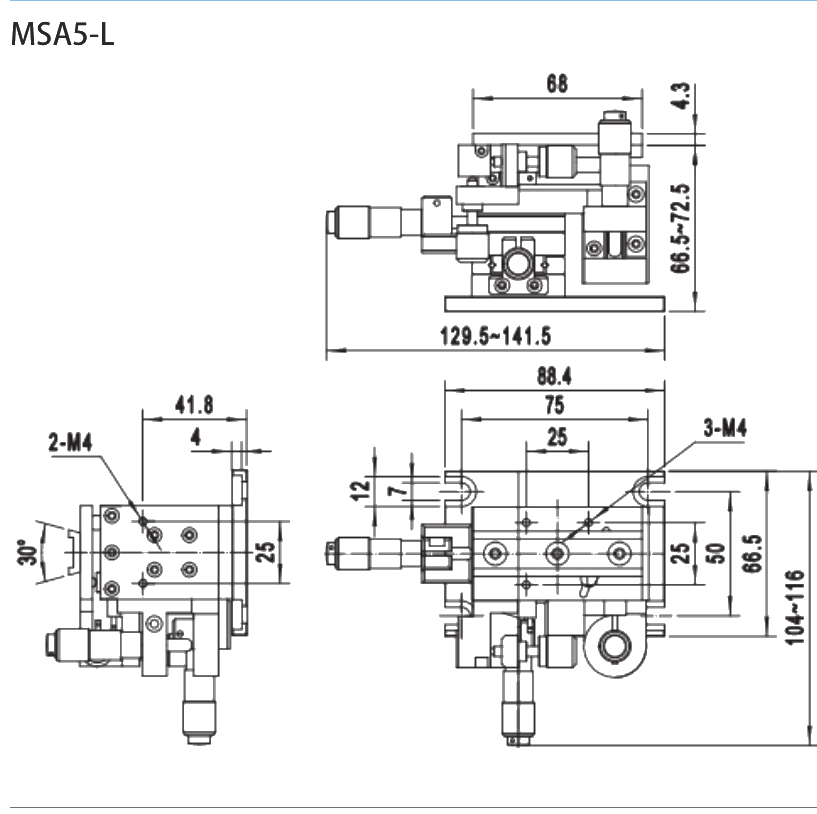

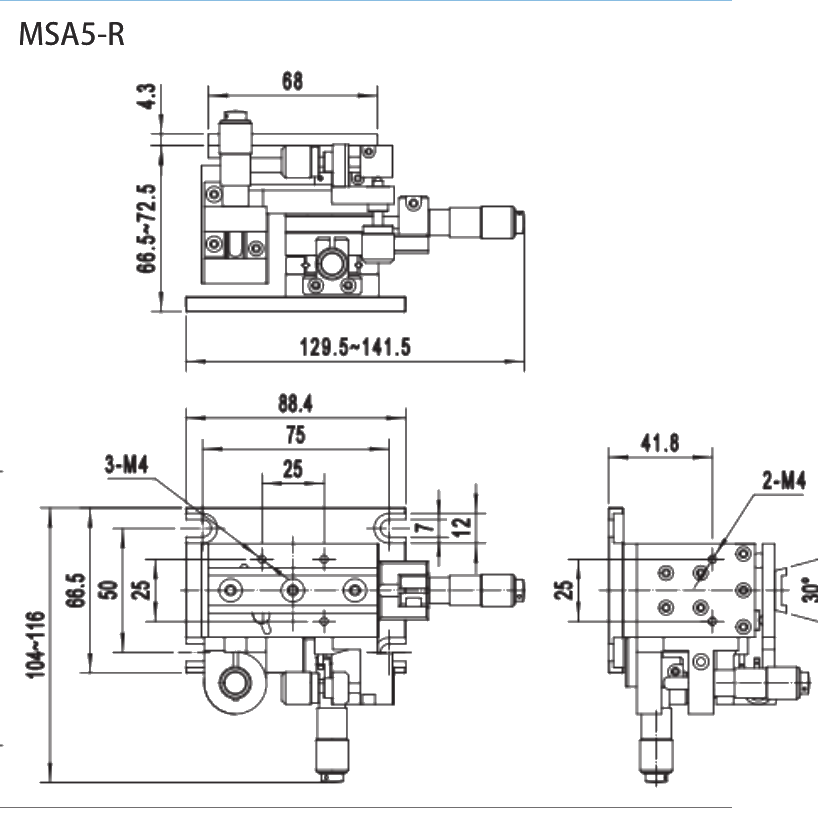

Typical dimensional drawings (from the official manual). Click to enlarge. Refer to factory drawings for exact dimensions; custom and OEM designs are welcome.
