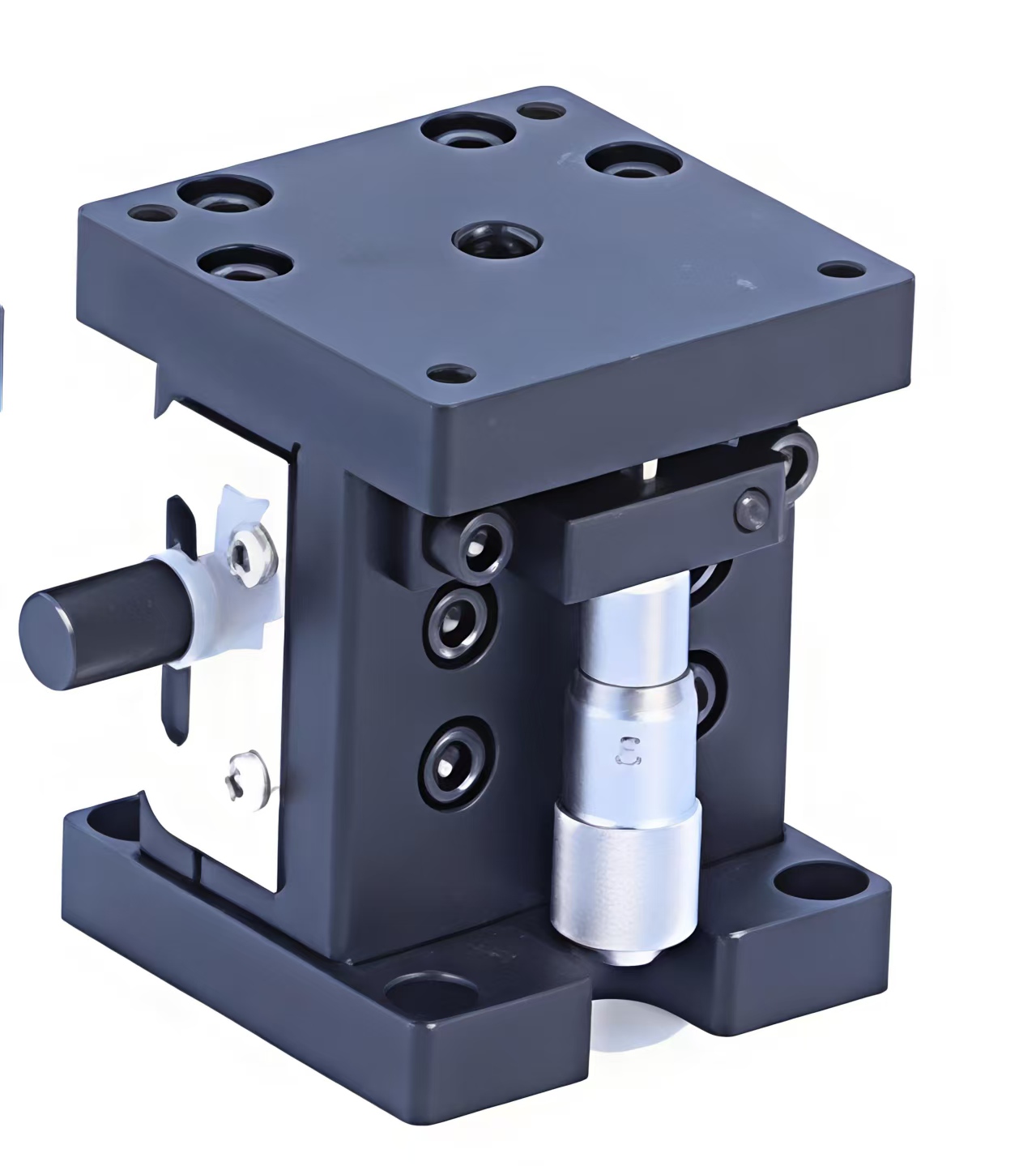

MAVL-Z Series Precision Manual Vertical Positioners
ModelMAVL-Z Series中文页面 ↗
- Travel 6–10 mm
- Linear ball guide
+86 137 1698 9256 Ms. Liu · sally-liu@ddhc-tech.com
Custom and OEM designs are welcome — contact us for pricing and selection support.
Specifications
| Model | MAVL-Z Series |
|---|---|
| Series | MAVL |
| Category | Manual Stages |
| Motion | Lift |
| Available Models | MAVL06-40-Z, MAVL13-60-Z, MAVL13-65-Z (3 models; vertical drive, travel 6/13 mm, tables 40/60/65 mm, linear guide, load 2–3 kg) |
| Naming Convention | MA=manual + aluminium; V=vertical lift; L=linear guide (C=crossed roller guide); leading digit=travel (mm); trailing digits=table size (mm); suffix Z=vertical drive (no suffix=horizontal drive) |
| Center Load | 2 / 3 / 3 kg |
| Weight | 0.3 / 0.5 / 0.8 kg |
| Drive Position | Vertical |
| Table Size | 40×40 / 60×60 / 65×65 mm |
| Guide Type | Linear guide |
| Body Material | Aluminum alloy, black anodized |
| Static Parallelism | 0.1 mm |
| Note | Specifications compiled from the product selection chart; refer to the latest factory data. |
| Source SKU | 12261418 |
Specifications shown are typical values; detailed drawings and full specifications are available on request. OEM and custom designs are welcome.
Functional Image

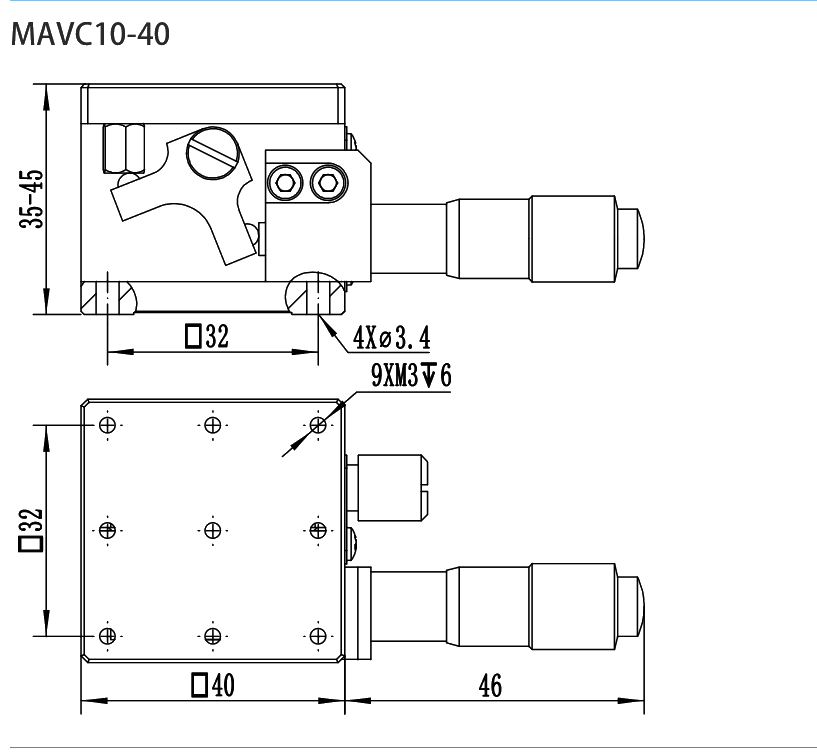

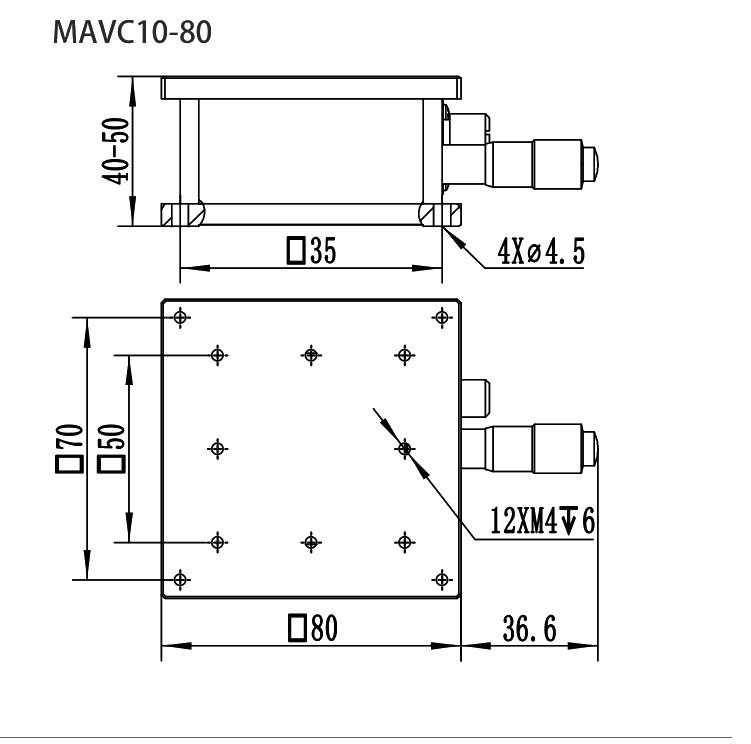

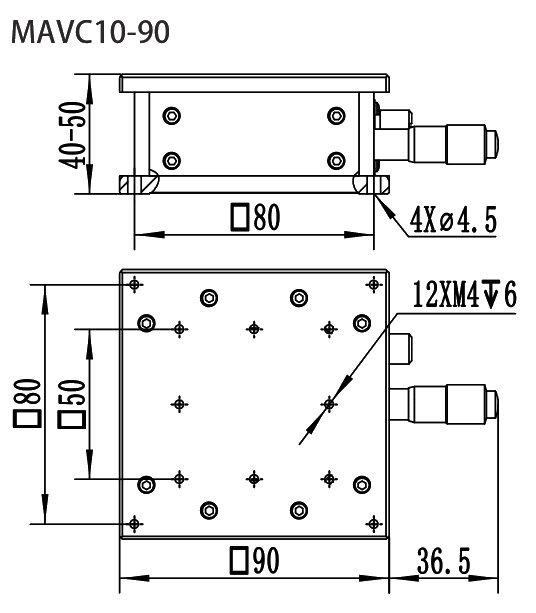

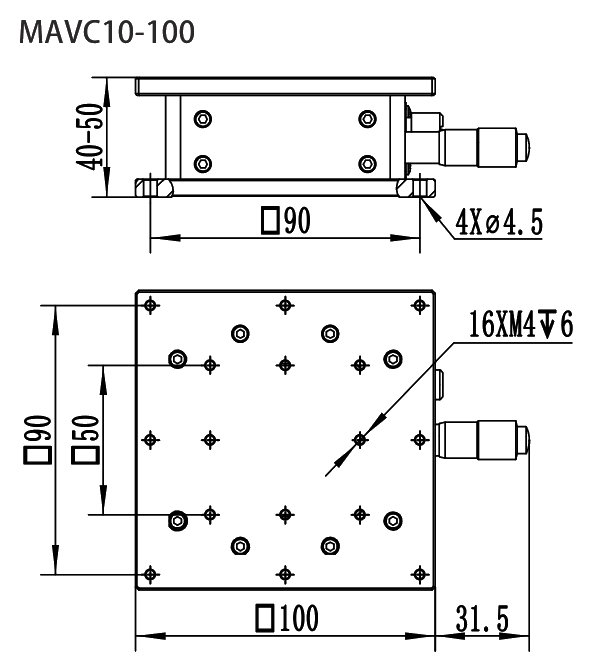

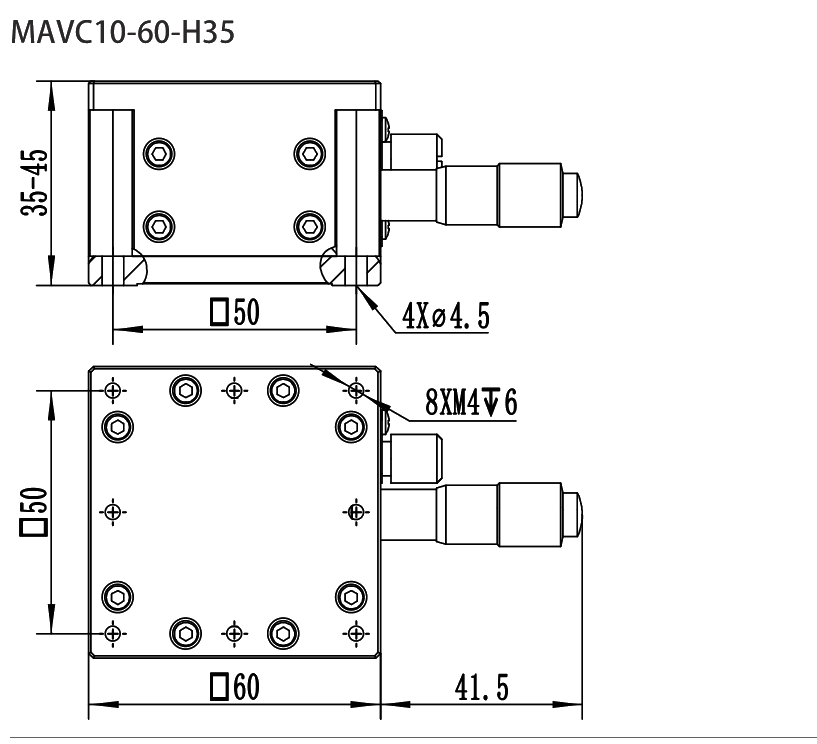

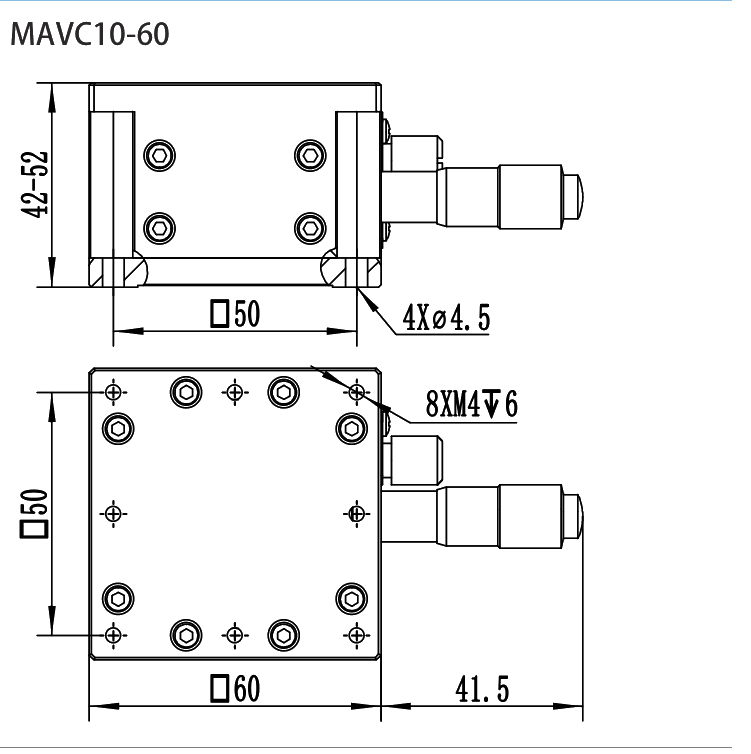

Typical dimensional drawings (from the official manual). Click to enlarge. Refer to factory drawings for exact dimensions; custom and OEM designs are welcome.
