EAGW50-65-HS Series Precision Worm-Gear Rotation Stages
ModelEAGW50-65-HS中文页面 ↗
- Worm-gear drive
- Load capacity 3–4 kg
- Customization available
+86 137 1698 9256 Ms. Liu · sally-liu@ddhc-tech.com
Custom and OEM designs are welcome — contact us for pricing and selection support.
Specifications
| Model | EAGW50-65-HS |
|---|---|
| Series | EAGW |
| Category | Motorized Stages |
| Motion | Rotation |
| Travel | ±10° |
| Gear Ratio | 159:1 |
| Center Load | 4kg |
| Weight | 0.9kg |
| Repeatability | ≤±0.005° |
| Resolution (1/8 step) | ≈0.001° |
| Max. Speed | ≈22.6°/s |
| Table Size | 60mm×60mm |
| Guide Type | Worm gear |
| Body Material | Aluminum alloy, black anodized |
| Pivot Height | 45mm |
| Motor | 2-phase 42 stepper motor |
| Step Angle | 1.8° |
| Current | 1.7A/phase |
| Holding Torque | 0.456N·m |
| Recommended Controller | DH2x42, DH3x42, DH5x42, DH6x42 |
| Limit Type | Photoelectric sensor |
| Limit Sensors | 2 × PM-L25 |
| Origin Sensor | 1 × PM-L25 |
| Note | Specifications compiled from the product selection chart; refer to the latest factory data. |
| Source SKU | 12261396 |
Specifications shown are typical values; detailed drawings and full specifications are available on request. OEM and custom designs are welcome.
Functional Image

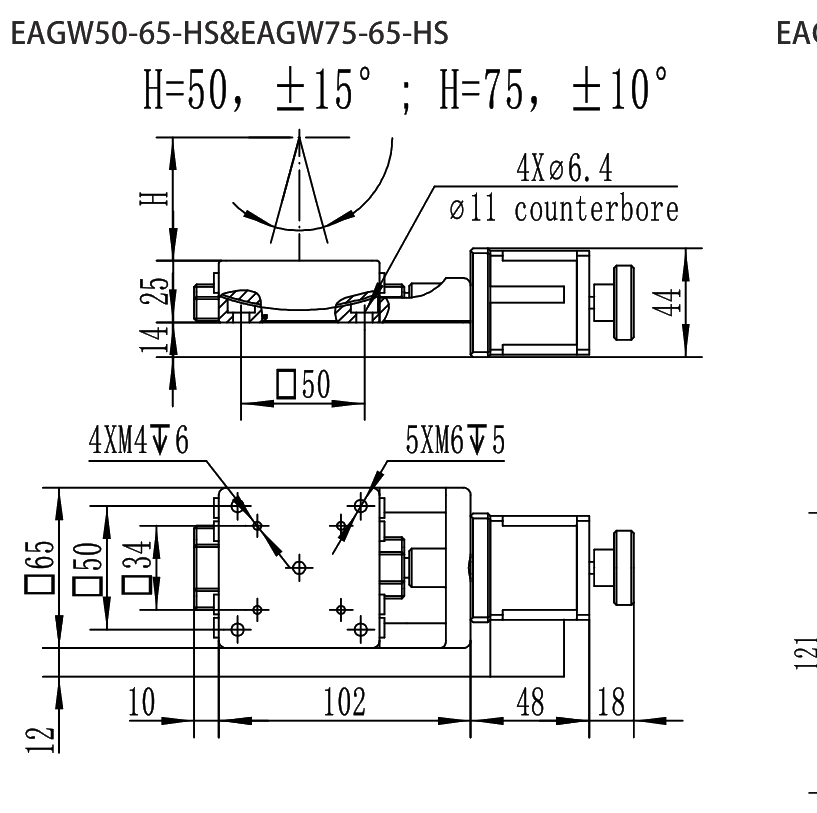

Typical dimensional drawings (from the official manual). Click to enlarge. Refer to factory drawings for exact dimensions; custom and OEM designs are welcome.
