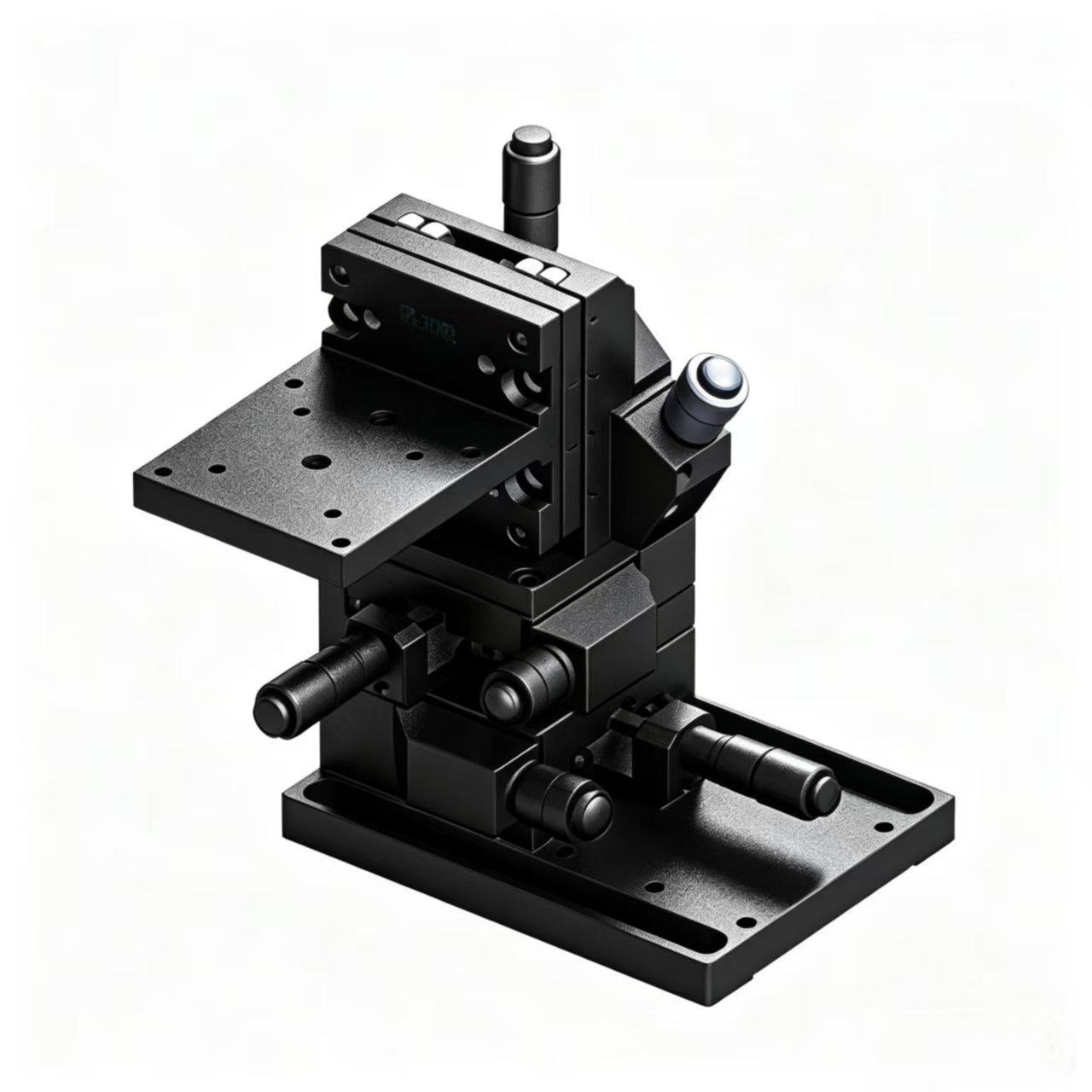

UA Series 2- to 6-Axis Fiber Alignment Stages
ModelUA Series中文页面 ↗
- Detailed specifications available on request
+86 137 1698 9256 Ms. Liu · sally-liu@ddhc-tech.com
Custom and OEM designs are welcome — contact us for pricing and selection support.
Specifications
| Model | UA Series |
|---|---|
| Series | UA |
| Category | Fiber Optic Alignment Stages |
| Motion | Translation |
| Available Models | UALC260L, UALC260R, UALC360L, UALC360R, UALC360L2, UALC360R2, UALC560L, UALC560R, UALC660L, UALC660R (10 models; 2–6 axis multi-axis adjustment, each axis coarse ±6.5 mm / fine ±0.3 mm, tables 60×60 / 45×45 mm) |
| Naming Convention | U=fiber-optic series; A=aluminium; L=translation / R=rotation; C=crossed roller guide/bearing; single-axis digit=travel (mm, 13), multi-axis leading digit=number of axes (2/3/5/6); 60=table size (mm); L/R=left/right drive; Z=with Z vertical axis; trailing 2=dual-table variant |
| Center Load | 5 / 1.5 kg |
| Weight | 0.4–2.4 kg (by number of axes) |
| Drive Position | L: left / R: right / RZ, RZ2: right with Z-axis (micrometer) |
| Table Size | 60×60 / 45×45 mm |
| Guide Type | Crossed roller guide / crossed roller bearing |
| Body Material | Aluminum alloy, black anodized |
| Static Parallelism | ≤0.06 mm |
| Note | Specifications compiled from the product selection chart; refer to the latest factory data. |
| Source SKU | 12261426 |
Specifications shown are typical values; detailed drawings and full specifications are available on request. OEM and custom designs are welcome.
