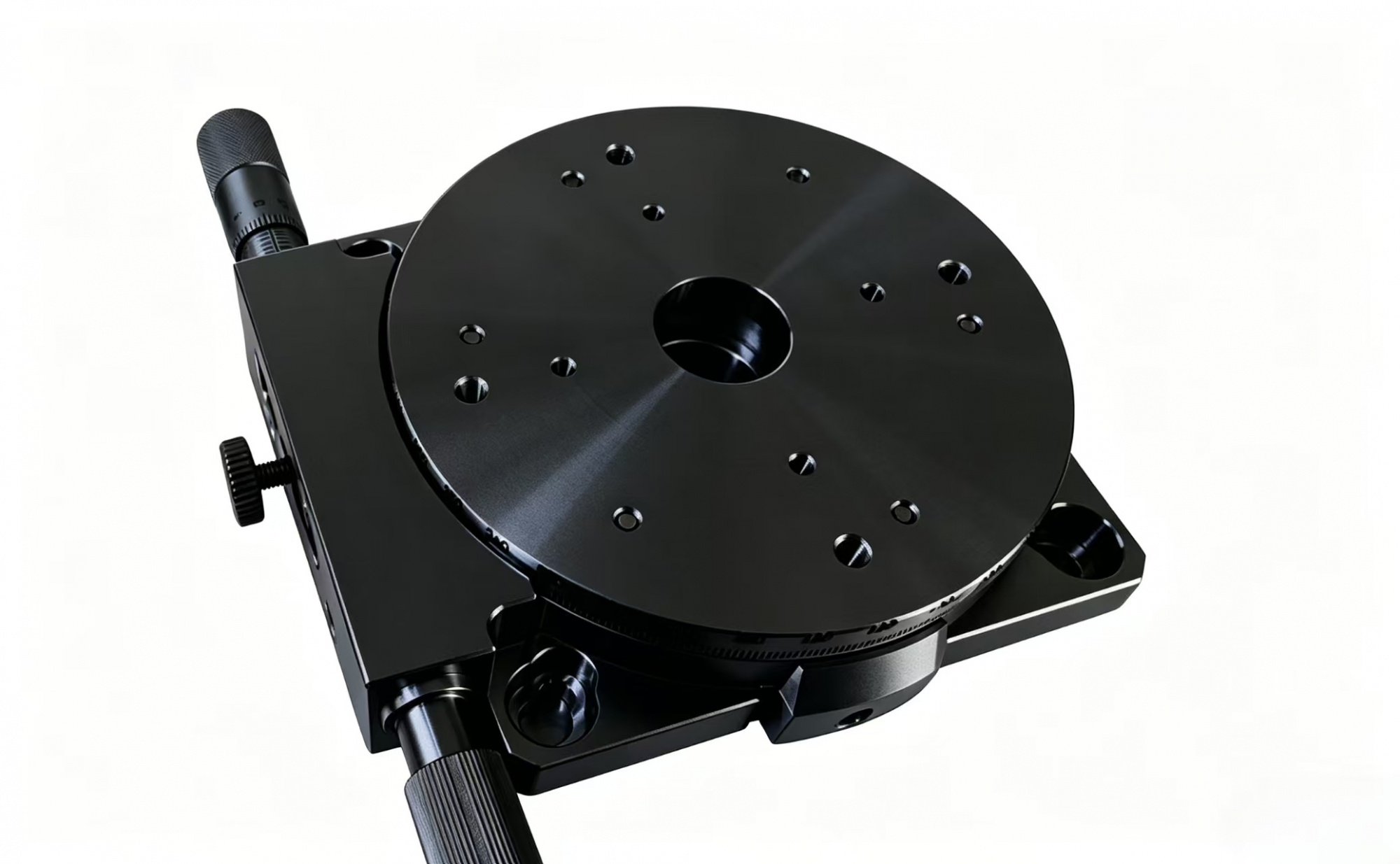

MARC Series Manual Rotation Stages
ModelMARC Series中文页面 ↗
- Single-axis drive with standard micrometer
- Table sizes: multiple options
- Coarse 360°, fine ±5° or ±10°
- Lapped or crossed-roller bearing guides
+86 137 1698 9256 Ms. Liu · sally-liu@ddhc-tech.com
Custom and OEM designs are welcome — contact us for pricing and selection support.
Specifications
| Model | MARC Series |
|---|---|
| Series | MARC |
| Category | Manual Stages |
| Motion | Rotation |
| Available Models | MARC10-60, MARC10-60-M6, MARC10-90 (3 models; coarse 360°, fine ±5°, tables φ60/φ90 mm, crossed roller bearing, load 4–6 kg) |
| Naming Convention | MA=manual + aluminium; R=rotation; C=crossed roller bearing (D=lapped fit); 10=fine-adjust travel code; trailing digits=table diameter (mm); suffix M6=base mounting holes M6 |
| Center Load | 4 / 4 / 6 kg |
| Weight | 0.5 / 0.5 / 0.76 kg |
| Drive Position | Coarse 360° + fine ±5° (micrometer head) |
| Table Size | φ60 / φ60 / φ90 mm |
| Guide Type | Crossed roller bearing |
| Body Material | Aluminum alloy, black anodized |
| Static Parallelism | 0.1 mm |
| Note | Specifications compiled from the product selection chart; refer to the latest factory data. |
| Source SKU | 12261345 |
Specifications shown are typical values; detailed drawings and full specifications are available on request. OEM and custom designs are welcome.
