MSLB13-60 Series Stainless Steel Translation Stages
ModelMSLB13-60中文页面 ↗
- Single- or dual-axis drive with standard micrometer
- 60 × 60 mm platform
- Travel 13 mm
- Micrometer graduation: 10 µm
- Available with center, left or right drive
- Additional specifications available on request
+86 137 1698 9256 Ms. Liu · sally-liu@ddhc-tech.com
Custom and OEM designs are welcome — contact us for pricing and selection support.
Specifications
| Model | MSLB13-60 |
|---|---|
| Series | MSLB |
| Category | Manual Stages |
| Motion | Translation |
| Available Models | MSLB13-60-C, MSLB13-60-CZ, MSLB13-60-L, MSLB13-60-LZ, MSLB13-60-R, MSLB13-60-RZ, MSLB13-60-LL, MSLB13-60-RR; 2-axis/3-axis: MSLB260-C, MSLB260-L, MSLB260-R, MSLB360-C, MSLB360-L, MSLB360-R (14 models; travel 13 mm, table 60×60 mm, integrated guide, stainless steel, load 8 kg) |
| Naming Convention | MS=manual + stainless steel; L=integrated guide; B=translation stage; single-axis form=[travel mm]-[table mm]; 2/3-axis form has leading digit 2/3 = number of axes (e.g. MSLB240, MSLB340); suffixes C/CZ=center (vertical), L/LZ=left (vertical), R/RZ=right (vertical); CC/LL/RR=dual-side 2-axis drive |
| Drive Position | Center / left / right (micrometer head) |
| Table Size | 60×60 mm |
| Guide Type | Integrated guide |
| Body Material | Stainless steel |
| Static Parallelism | ≤0.05 mm |
| Note | Specifications compiled from the product selection chart; refer to the latest factory data. |
| Source SKU | 12261348 |
Specifications shown are typical values; detailed drawings and full specifications are available on request. OEM and custom designs are welcome.

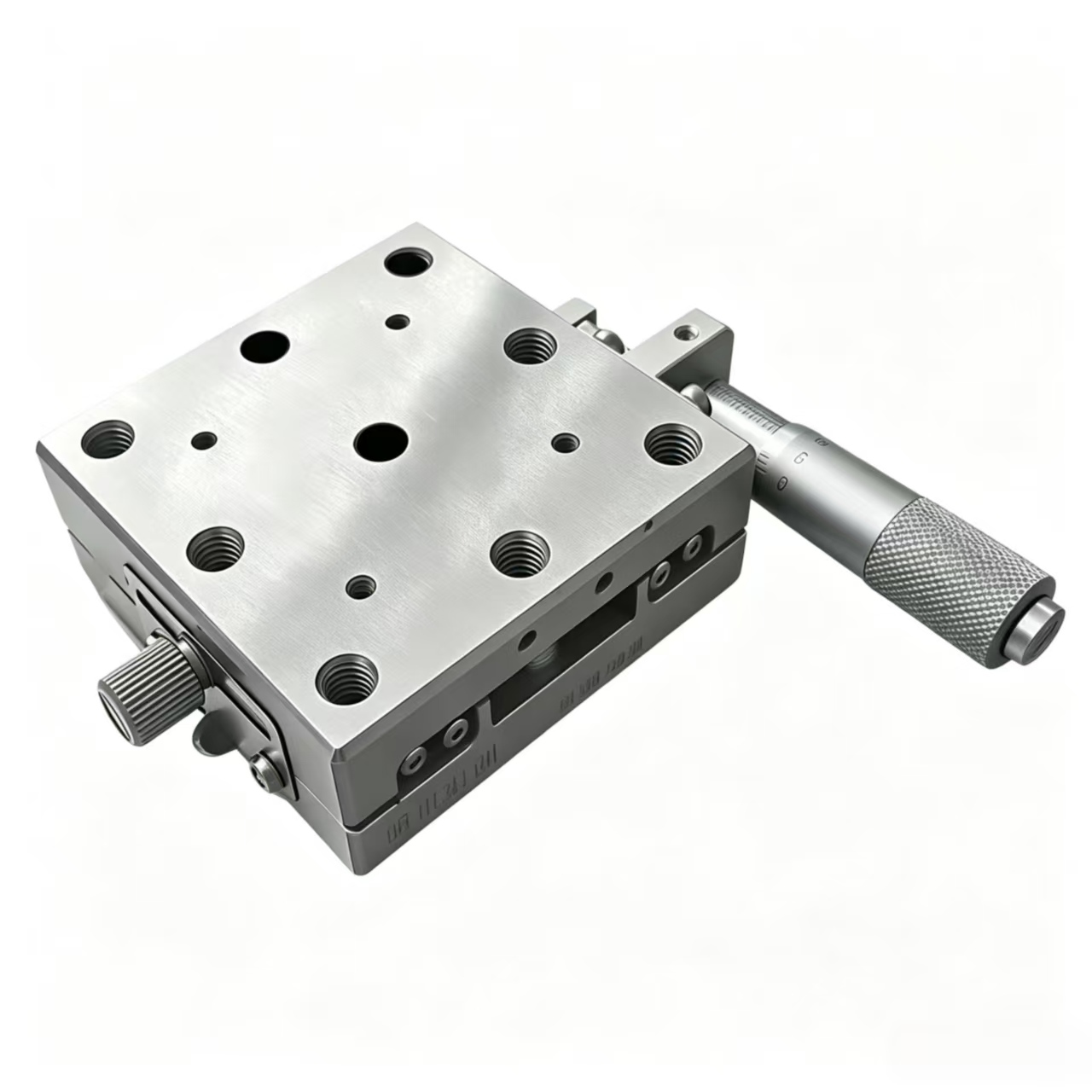

Functional Image

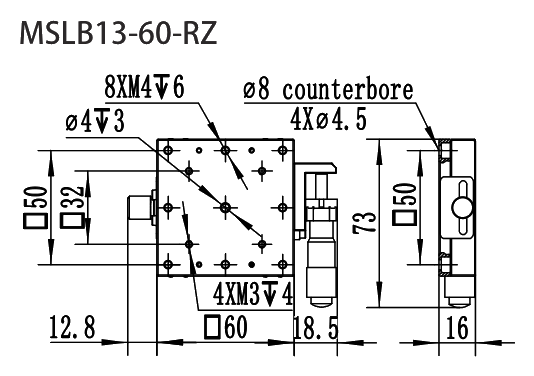

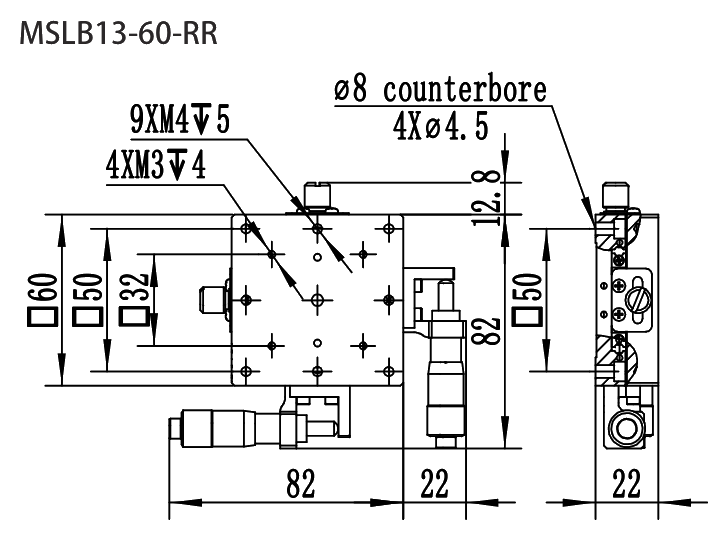

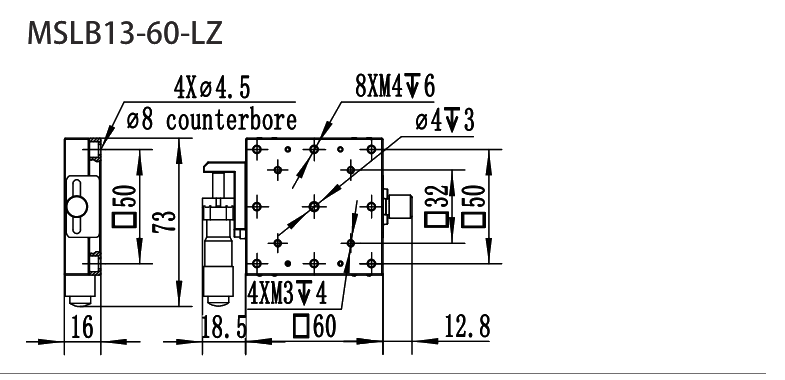

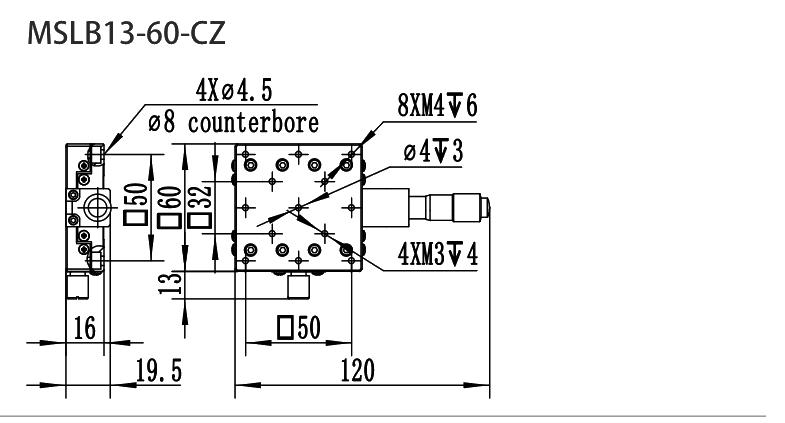

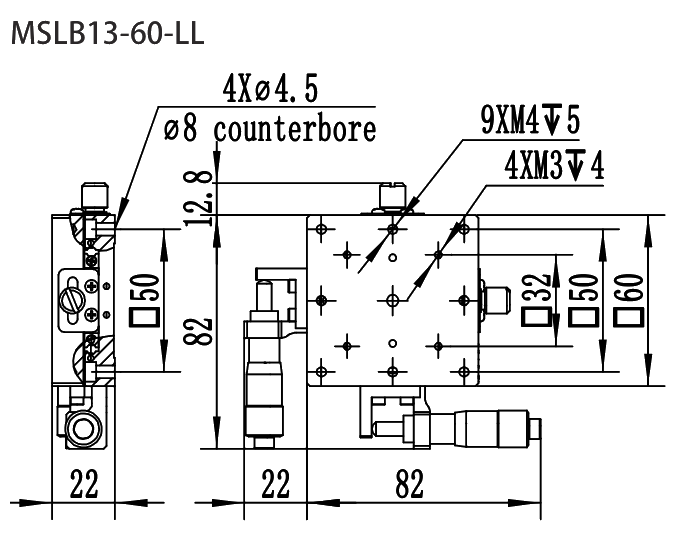

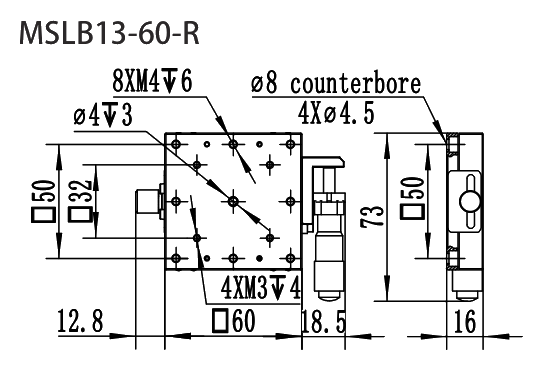

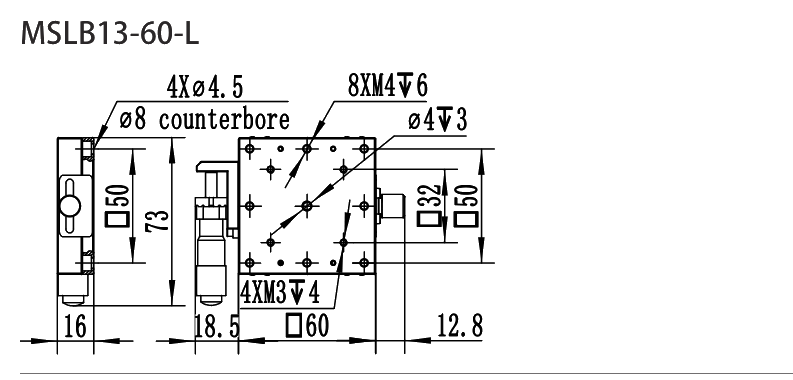

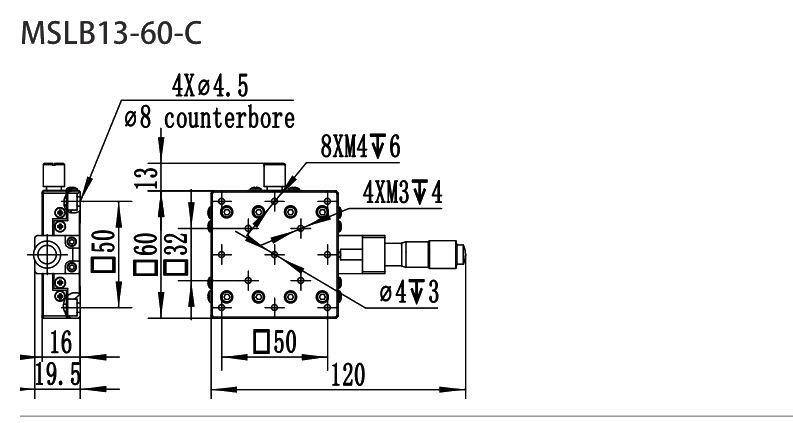

Typical dimensional drawings (from the official manual). Click to enlarge. Refer to factory drawings for exact dimensions; custom and OEM designs are welcome.
