MCGD Series Brass Goniometers
ModelMCGD Series中文页面 ↗
- Worm-gear or micrometer drive
- Table sizes: multiple options
- Travel: multiple options
- Dovetail or curved crossed-roller guides
- Stackable for coincident rotation centers
+86 137 1698 9256 Ms. Liu · sally-liu@ddhc-tech.com
Custom and OEM designs are welcome — contact us for pricing and selection support.
Specifications
| Model | MCGD Series |
|---|---|
| Series | MCGD |
| Category | Manual Stages |
| Motion | Goniometer |
| Available Models | MCGD25-40, MCGD40-40, MCGD60-40, MCGD35-60, MCGD60-60, MCGD80-60 (6 models; worm gear drive, tables 40/60 mm, pivot heights 25–80 mm, dovetail guide, copper, blackened) |
| Naming Convention | M=manual; C=copper (A=aluminium); G=goniometer (tilt); D=dovetail guide (C=crossed roller guide); leading digit=pivot height (mm); trailing digits=table size (mm) |
| Center Load | 3 / 3 / 3 / 4 / 4 / 4 kg |
| Weight | 0.11 / 0.11 / 0.11 / 0.22 / 0.26 / 0.26 kg |
| Drive Position | Worm gear（handwheelcenter drive） |
| Table Size | 40×40 / 60×60 mm（rotationcenter height 25~80mm） |
| Guide Type | Dovetail slideguide |
| Body Material | Copper, blackened |
| Note | Specifications compiled from the product selection chart; refer to the latest factory data. |
| Source SKU | 12261411 |
Specifications shown are typical values; detailed drawings and full specifications are available on request. OEM and custom designs are welcome.
Functional Image

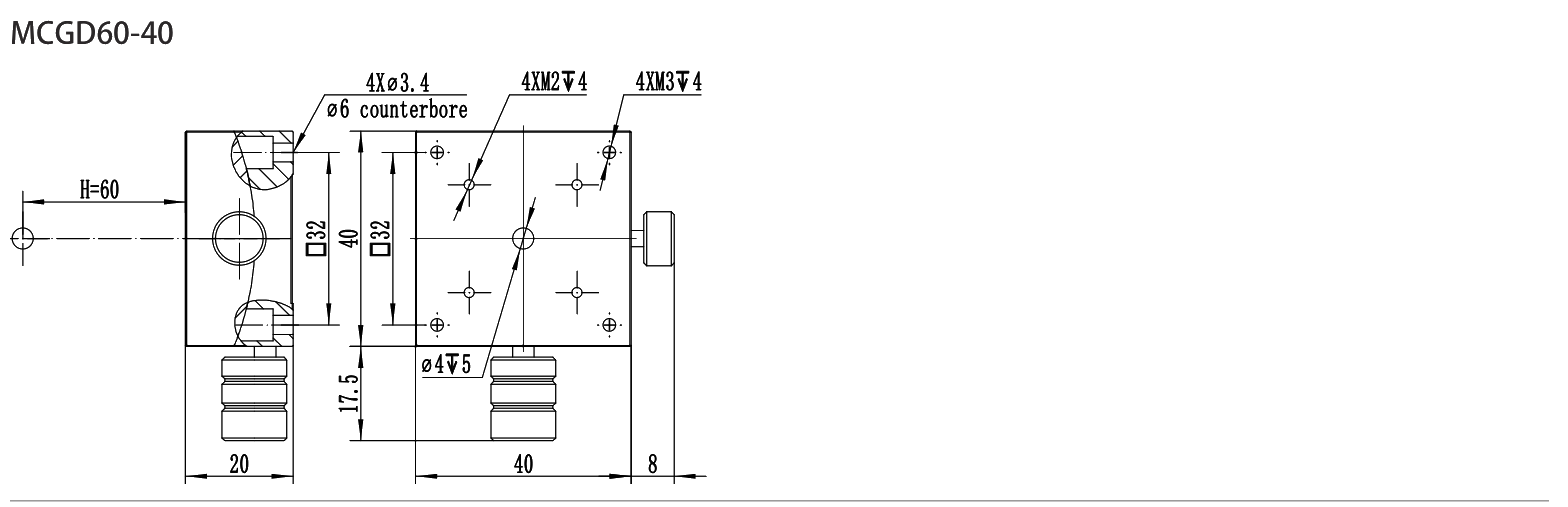

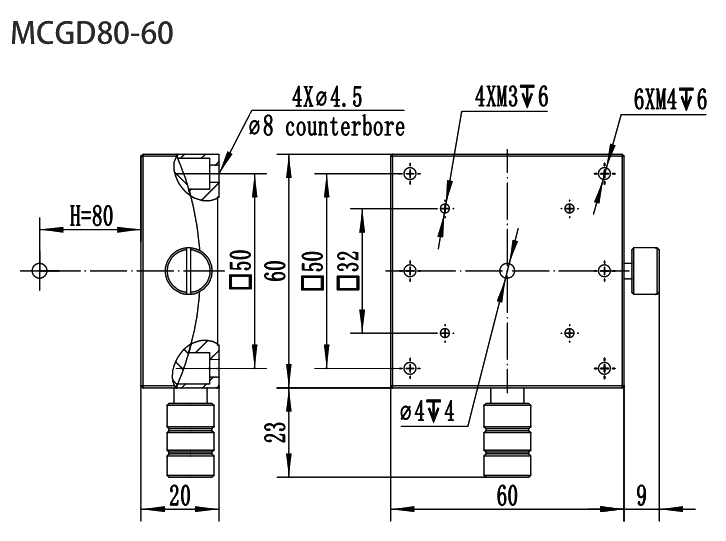

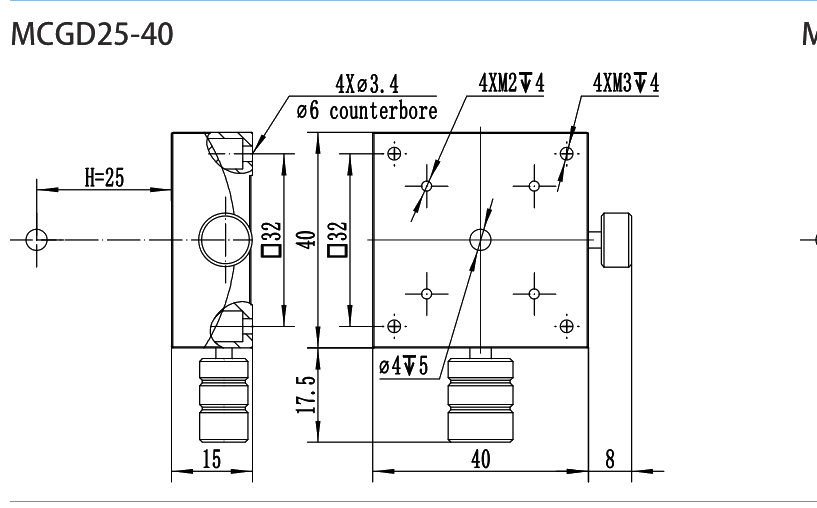

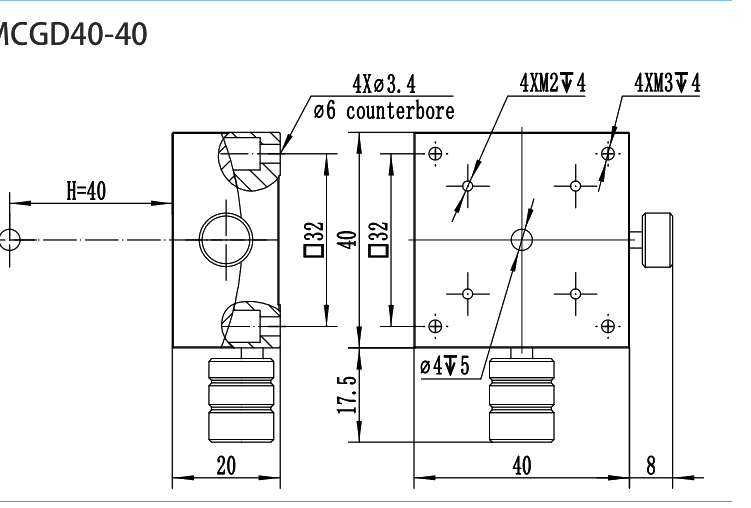

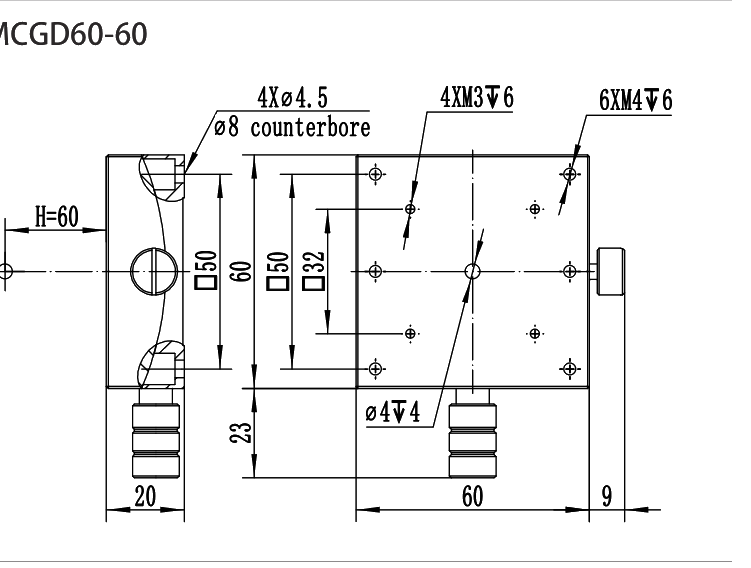

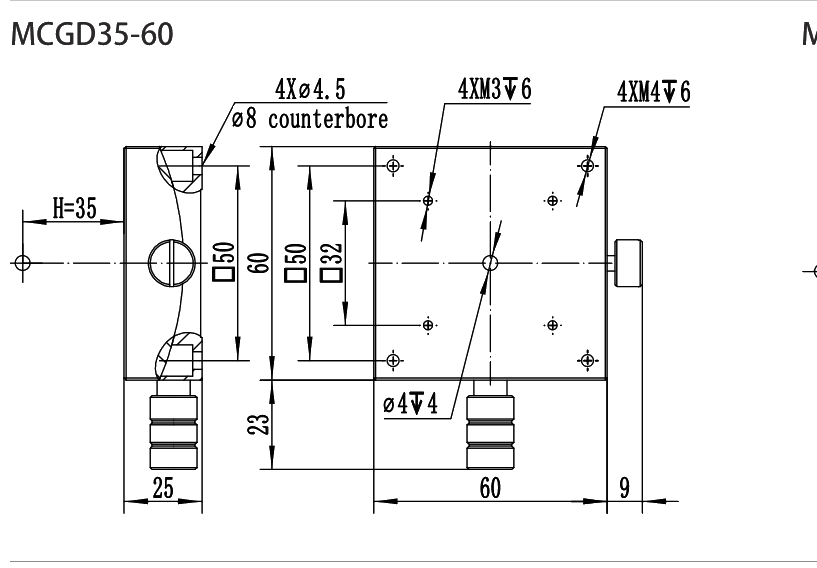

Typical dimensional drawings (from the official manual). Click to enlarge. Refer to factory drawings for exact dimensions; custom and OEM designs are welcome.
